Titanium dioxide (TiO₂) nanoparticles have been used widely as a nanocarrier in drug delivery systems due to their high delivery efficiency and controlled release of therapeutic drugs. Diethylenetriaminepentaacetic Acid (DTPA) is an attractive decorporationagent that can enhance the excretion of radioactive actinides such as uranium, plutonium and americium after a radiological incident. However, DTPA is excreted in a short period of time after administration. In this project, biocompatible Polyethylene Glycol (PEG) functionalized TiO₂ nanoparticles was used to load DTPA to increase its residence time in the human body. The prepared DTPA-loaded PEG-functionalized TiO₂ nanoparticles were characterized by transmission electron microscopy, Fourier transform infrared spectroscopy and dynamic light scattering. The prolonged retention of DTPA from PEG-functionalized TiO₂ nanoparticles were also evaluated via dialysis experiments. Liquid chromatography-mass spectrometry analysis of the dialysates showed an extended release of DTPA into simulated lung fluid.This approach was used for the first time to sustain the release of DTPA in an in vitro study.

Decorporation agent; Dialysis; DTPA; In vitro release; Simulated lung fluid; Titanium dioxide nanoparticles

During radiological accidents, inhalation of radioactive materials could be the main route of internal contamination [1]. During the radioactive decay harmful ionizing radiation, such as alpha particles, beta particles, and gamma rays are emitted [2]. The quantity of radionuclides inhaled, the type of radiation, and the proximity of contamination to organs in the human body determine the degree of hazard. Cellular exposure to ionizing radiation leads to the generation of Reactive Oxygen Species (ROS) that can damage biological macromolecules via the radiolysis of intracellular H₂O [3-5].

To reduce the ionization radiation damage to the human body systems, chelation therapy may be required. Chelation, also called decorporation, is referring to the removal of internal radioactive contaminants from the body following a radiological incident. Diethylenetriaminepentaacetic Acid (DTPA) is recognized as a chelating agent that accelerates the excretion of actinides. It works best when given shortly after radioactive isotopes enter the body. DTPA comes in three forms: calcium DTPA, zinc DTPA and sodium DTPA. All forms are very effective in enhancing the elimination of actinides such as plutonium and americium [6]. DTPA catches these radionuclides in the body and turns them into a stable coordination complex form that can be excreted in the urine [7]. The efficacy of DTPA as a decorporation agent is limited by several factors. DTPA exhibits low distribution in tissues due to its low solubility. Therefore, it can only chelate contaminants that are still in the blood or extracellular fluid. Moreover, it has a residence time as short as 90 minutes in humans due to fast clearance mechanisms [8]. Therefore repeated daily doses over several weeks may be required to achieve the desired decorporation. However, such a frequent dosage of DTPA can cause severe toxic effects by the depletion of essential elements such as magnesium, manganese and even calcium or zinc [9].

Systemic delivery of DTPA has traditionally been used for the decorporation of radioactive contaminants. However, due to its low local concentration in the lungs, the clinical application remains largely unsatisfactory for treating contamination via inhalation [10]. Achieving a sustained presence of the chelating agent in the lungs is very challenging [11]. Drug delivery to the lungs through inhalation is considered to be particularly advantageous due to a high-localized concentration of the agent and relatively low side effects [12].

Nanoparticles, also known as ultrafine particles, come together to compose what is known as Nanomaterials (NMs). The physicochemical properties of nanoparticles are dependent on their particle size, chemical composition, electronic charge, surface structure, crystalline phase, solubility, shape and aggregation [13]. Nanotechnology has emerged as a highly valuable, useful and versatile technology. It has found application in catalysis, cosmetics, drug carriers, food additives and sunscreen. Complimentary to the development of nanotechnology, Drug Delivery Nanosystems (DDNSs) is gaining more attention by researchers and scientists worldwide [14-16]. Among NMs, Titanium dioxide Nanoparticles (TiO₂ NPs) are one of the most used drug delivery Nanosystems [17]. TiO₂ has been used as a drug carrier for various drugs such as daunorubicin, sodium phenytoin, temozolomide and valproic acid. TiO₂ showed high delivery efficiency and sustained drug release over days, weeks, or months. This can decrease the exposure time to the drug which lead to less side effect [18-21].

Many industries make use of TiO₂ NPs and can be found in food products, various medicines and as well as cosmetics [22-24]. TiO₂ NPs efficacy can be attributed to their ability to reach various parts of the body. This can be accomplished through exposure routes, which include inhalation, ingestion and gastrointestinal tract absorption [25]. DDNSs have a unique potential to not only enhance drug bioavailability, but also to extend the period of drug release and enhance the drug targeting [26].

Polyethylene Glycol (PEG) is a polyether compound with many medical applications due to its biocompatible and biodegradable properties [27]. The attachment of PEG to the surface of nanoparticles increases their biocompatibility [28]. Jugan et al., and Yaling et al., performed a study on the influence of TiO₂ nanoparticles on human lung cells and mouse liver cells [29]. This study confirmed that the toxicity of TiO₂ is reduced when functionalized with polymers [30]. Nanoparticles that are not functionalized with PEG are recognized as foreign products and ejected from the blood circulation by macrophage cells that exist within the reticuloendothelial system. The TiO₂ nanocarrier has been used successfully for the controlled release of anticancer drugs such as paclitaxel [31,32].

In this study, we loaded DTPA onto PEG-functionalized TiO₂ nanoparticles in order to achieve effective delivery and sustained release of this agent into the lungs. The prepared DTPA-loaded PEG-functionalized TiO₂ NPs were characterized by different analytical techniques. To confirm our hypothesis of extended release, DTPA released from the PEG-TiO₂ into simulated lung fluid was monitored via dialysis experiments. The loading capacity of DTPA on PEG-functionalized TiO₂ NPs was determined by LC-MS analysis.

Titanium dioxide nanoparticles (20 nm), polyethylene glycol (molecular weight or degree of polymerization Mn6000), Diethylene- triaminepentaacetic Acid (DTPA-H₅), penta sodium salt of diethylen- etriaminepentaacetic Acid (DTPA-Na₅), calcium chloride, iron (III) chloride hexahydrate, magnesium chloride, potassium chloride, sodi- um chloride, sodium citrate dehydrate, sodium hydrogen carbonate, sodium sulfate, dihydrate sodium acetate, disodium hydrogen phos- phate, D-mannitol and formic acid were purchased from Sigma-Al- drich and are ACS grade or greater. Regenerated cellulose dialysis membranes (MWCO 3500 D) were purchased from Thermo Fisher Scientific.

A solution of DTPA-Na₅ (1 mL, 1000 mg/L) was mixed with different concentrations of PEG-functionalized TiO₂ nanoparti- cles (0.0.0058, 0.0233, 0.0583 and 0.175 g/mL) and adjusted to final volumes of 1.5 mL. Also, another solution of DTPA-H₅ (1 mL, 1000 mg/L) was mixed with a new batch of PEG-functionalized TiO₂ nanoparticles in the same aforementioned concentrations [33]. The mixtures were left overnight to interact followed by centrifugation at 4500 rpm for 1 h at 18°C. Liquid Chromatography-Mass Spectrometry (LC-MS) analysis of the supernatants was performed to determine any free DTPA.

TiO₂ nanoparticles (20 nm) were mixed with 1% Polyethylene Glycol (PEG) solution in distilled deionized water, and the mixture was magnetically stirred overnight. The resulting PEG-functionalized TiO₂ were collected by centrifugation at 4500 rpm for 1 h at 18°C, and washed with water [31,32]. Similarly, Polyethylenimine (PEI)-functionalized TiO₂ nanoparticles were prepared. An aqueous solution of DTPA at 1 mg/mL was added into the PEG-functionalized TiO₂ and the mixture was magnetically stirred overnight. The DTPA loaded PEG functionalized TiO₂ nanoparticles were separated by centrifugation at 4500 rpm for 1 h at 18°C, washed with distilled water for freeze-drying [31,32]. A pre-frozen solution of DTPA loaded PEG functionalized TiO₂ was mixed with a 5% solution of D-mannitol before freeze-drying in a Labconco model 7753020 freeze dryer operating at a temperature of -530C7. Mannitol was used as a dispersant to prevent the aggregation of DTPA loaded PEG functionalized TiO₂ during the freeze-drying process. DTPA-loaded PEG-functionalized TiO₂ nanoparticles were obtained as dry powders.

Transmission Electron Microscopy (TEM) was used to characterize the TiO₂ nanoparticles, before and after functionalization with PEG and loading of DTPA on a FEI Tecnai G2 F20 microscope operating at 200 kV.

The chemical structures of TiO₂ nanoparticles and surface modified nanoparticles were characterized using an ABB (Bomem MB series, Quebec, Canada) Fourier Transform Infrared (FTIR) spectrometer. Disc samples were prepared by grinding 2 mg of nanoparticles with 200 mg of spectrophotometric-grade KBr. All FTIR spectra were obtained in the spectral region of 600-4000 cm^-1.

Dynamic Light Scattering (DLS) was used to measure the hydro-dynamic size distribution of TiO₂ nanoparticles and DTPA loaded PEG-TiO₂ nanoparticles suspended in 10 mM potassium nitrate buf- fer. DLS analysis of each suspension was performed using a Brookhaven Instruments nano DLS particle size analyzer (Holtsville, NY, USA). Each suspension was measured in ten replicates of 10 s each for higher accuracy [7,34].

The prepared PEG-functionalized TiO₂ nanoparticles at different concentrations 0.0084, 0.0168, 0.0252, 0.0336, 0.042, 0.084, 0.126 and 0.168 g/mL were mixed with 1 mL of DTPA-H₅ at 1000 mg/L. The mixtures were left overnight to interact followed by centrifugation. LC-MS analysis of the supernatants was performed to determine the PEG-TiO₂ capacity. The capacity of polyethylenimine functionalized TiO₂ nanoparticles (PEI-TiO₂) was determined following the same procedure [33].

Simulated Lung Fluid (SLF) was prepared with pH 7.4 for in vitro release tests based on Marques et al., description (Gamble’s solution) [35]. DTPA loaded PEG-functionalized TiO₂ nanoparticles were dispersed in 10mL of SLF, followed by transferring to dialysis membrane tubing (MWCO 3500). Then, the dialysis tubing was immersed in a beaker containing 50 mL of lung fluid.The dialysis processwas performed at 37±1ºC under magnetic stirring. At appropriate time intervals, a dialysate sample was taken and replaced by the same volume of SLF to keep the dialysis volume constant. The in vitro release test was conducted for 28-50 hours. Finally, all the dialysate samples were analyzed by LC-MS/MS to determine the concentration of released DTPA versus the dialysis time.

Liquid Chromatography-tandem Mass Spectrometry (LC-MS/ MS) was used to determine the DTPA concentration released during the dialysis experiments. DTPA standard solutions and dialysate samples were mixed with Fe3+ ions to form a stable [M-4H+ + Fe3+]− cluster ion. All Fe-DTPA standards and dialysate samples were diluted with 1:1 ratio of 0.1% formic acid before the analysis. A C18 column was used in LC (50 mm x 2.1 mm) maintained at room temperature. The mobile phase was prepared by mixing 98% A and 2% B at a flow rate of 0.4 mL/min: (A) 0.1% formic acid in ultrapure water and (B) 0.1% formic acid in acetonitrile. Formic acid facilitated the formation of protonated ions for higher MS detection sensitivity. Mass spectrometric analysis was performed using an Agilent Technologies model 6460 triple quad MS/MS system that was equipped with an ESI source operating in the negative mode. The operating parameters were: nitrogen gas flow rate = 9.8 L/min, gas temperature = 300°C, nebulizer pressure = 15 psi, capillary voltage = 4000 V, fragmentor voltage = 135 V, and cell accelerator voltage = 7 V. Single ion monitoring was set up to record the peak at m/z = 445.

When a solution of DTPA-Na₅ or DTPA-H₅ was added into two batches of PEG-functionalized TiO₂ NPs, most of the DTPA-H₅ was absorbed into the nanoparticles as indicated by decreases in the DTPA concentration that remained in the supernatant liquid (Figure 1). However, all the DTPA-Na₅ was found to remain in the supernatant liquid as illustrated in Figure 2. No change in the DTPA concentration was observed even with 1 week of contact time with varying amounts of functionalized NPs. Samples prepared with the addition of DTPA-H₅ to the functionalized TiO₂ NPs showed a significant decrease in the DTPA peak area as the concentration of PEG-TiO₂ nanoparticles increased. The latter result suggested strong binding of DTPA-H₅ with PEG-functionalized TiO₂ NPs compared to DTPA-Na₅. The formation of hydrogen bonds was a key factor for the interaction between DTPA-H₅ and PEG. The ability of DTPA-H₅ to act as a hydrogen donor allows the formation of hydrogen bonds between its carboxylic acid groups and the hydroxyl groups of PEG. This can explain the higher absorption of DTPA-H₅ into the PEG-functionalized TiO₂ compared to DTPA-Na₅. Moreover, the low absorption of DTPA-Na₅ could be due to the high affinity of DTPA5toward Na+ ions compared to PEG. Kubota et al., found that DTPA in its acidic form was retained in the blood circulation for a longer time compared to its salt forms which were excreted very fast via urine [36]. Based on this result; DTPA-H₅has been used for further experiments.

Figure 1: Absorption test of DTPA-H₅ into PEG-functionalized TiO₂ nanoparticles by monitoring the concentration of DTPA remaining in the supernatant liquid.

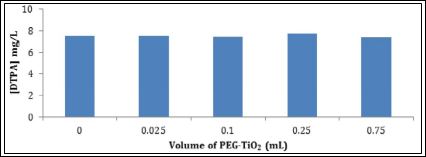

Figure 2: Absorption test of DTPA-Na₅ into PEG-functionalized TiO₂ nanoparticles by monitoring the concentration of DTPA remaining in the supernatant liquid.

The TEM images in Figure 3 show an average particle size of 17-21 nm for TiO₂ nanoparticles and 37 nm for DTPA loaded PEG-functionalized TiO₂. This increase in size could be attributed to DTPA loading and PEG fictionalization of TiO₂ NPs. Energy Dispersion x-ray (EDX) has been used to confirm our results. The atomic percentage of C increased in the DTPA loaded PEG-functionalized TiO₂ nanoparticles when compared to the PEG-functionalized TiO₂ nanoparticles before DTPA loading.

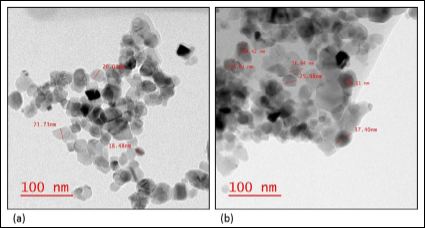

Figure 3: TEM images: (a) TiO₂ nanoparticles, and (b) DTPA-loaded PEG-functionalized TiO₂ nanoparticles. The TEM instrument offers a point resolution of 0.27 nm and a magnification ranging from 21 x to 700,000x

Figure 4 exhibits the FTIR of TiO₂, DTPA, PEG and DTPA loaded PEG functionalized TiO₂. The presence of characteristic absorption peaks of the TiO₂, PEG and DTPA in the DTPA loaded PEG function- alized TiO₂ suggested the loading of DTPA into the PEG functionalized NPs. The band at 602 cm-1 in the TiO2 (4a) corresponds to TiO2 stretching vibration, shifted into 707 cm-1 in the DTPA loaded PEG functionalized TiO2 (4d). The intense band in the PEG at 2889 cm-1 (4c) which, corresponds to the C-H stretching vibrations, shifted into 2866 cm-1 in the DTPA loaded PEG functionalized NPs. The bands in the DTPA (4b) that appears at 1733 and1698 cm-1, corresponding to the COO- and C=O functional groups respectively, are shifted to 1728 and 1636 cm-1 in the DTPA loaded PEG functionalized TiO2.

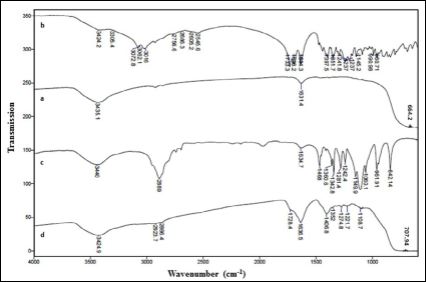

Figure 4: FTIR spectra: (a) TiO₂ nanoparticles, (b) PEG, (c) DTPA, and (d) DT- PA-loaded PEG-functionalized TiO₂ nanoparticles.

Dynamic light scattering of the TiO₂NPs exhibited a hydrody- namic diameter of 66 nm. The DTPA loaded PEG-TiO₂ showed a significant increase in their hydrodynamic diameter compared to the bare TiO₂ NPs. This increase confirmed the successful formation of DTPA-loaded PEG-functionalized TiO₂ nanoparticles.

The binding capacity experiment in Figure 4 showed a decrease in the DTPA peak area as the PEG functionalized TiO₂ NPs concentration increased from 0.0056 to 0.028 g/mL.The DTPA concentrations in the supernatant decrease, which means more DTPA, have been absorbed into the surface of PEG-TiO₂. However, no significant change in the absorption was observed when the PEG-functionalized TiO₂ concentration increased from 0.056, to 0.084 g/mL indicating equilibrium has been reached (Figure 5a). The capacity of PEG-func- tionalized TiO₂ nanoparticles was determined to be 21 mg DTPA/g of PEG-TiO₂ NPs based on LC-MS analysis. The low capacity of the functionalized TiO₂ is due to the polymer fictionalization into the NPs surface. However, the use of coating polymer was essential for the re- duction of TiO₂ nanoparticles toxicity and clearance by macrophage system. To increase the loading capacity of PEG-functionalized TiO₂ NPs, TiO₂ were functionalized with various 2%, 3% and 4% concen- trations of PEG. However, the resulted PEG-functionalized TiO₂ NPs didn’t exhibit higher capacity than the NPs that functionalized with 1% PEG concentration. In an attempt to improve the loading capac- ity of functionalized TiO₂ nanoparticles, Polyethylenimine (PEI) was used to functionalize the TiO₂ surface in a similar way to PEG. The- oretically PEI is a positively charged polymer at neutral pH. There- fore, electrostatic attractions between PEI and negatively charged DTPA could be strong compared to the electrostatic repulsion for negatively charged PEG. This can lead to more loading of DTPA into the PEI-functionalized TiO₂ nanoparticles. However, PEI-function- alized TiO₂ nanoparticles did not exhibit efficient loading of DTPA compared to PEG-functionalized TiO₂ nanoparticles, as shown in Figure 5b. About 50% of the DTPA was initially absorbed into the PEI-functionalized TiO₂ nanoparticles at 0.0056 g/mL. When more PEI-functionalized TiO₂ nanoparticles were added from 0.0112 g/mL up to 0.084 g/mL, the concentration of DTPA only decreased slightly, corresponding to a modest increase in DTPA loading from 21 mg/g to 25 mg DTPA/g of PEI-functionalized TiO₂ nanoparticles. Hence, the DTPA encapsulation efficiency of PEI-functionalized TiO₂ nanoparti- cles is not as good as PEG-functionalized TiO₂ nanoparticles. Neither PEG-TiO₂ nor PEI-TiO₂ nanoparticles showed any affinity toward gadolinium Gd+3, which had previously been used as a model trivalent ion. Therefore, decorporation of radioactive actinides will rely totally on the loaded DTPA when these functionalized TiO₂ nanoparticles are introduced to the contaminated lungs [37].

Figure 5: DTPA-H₅ binding capacities: (a) PEG-functionalized TiO₂ nanoparticles; (b) PEI-functionalized TiO₂ nanoparticles.

DTPA has high affinity toward trivalent ions that are present in the lung fluid. This can lead to the formation of several DTPA com- plexes. Therefore, the released DTPA in the dialysate samples was de- termined by LC-MS upon the formation of a stable Fe-DTPA2- com- plex due to the highest affinity of DTPA5- towards the Fe3+ metal ion compared to various metal ions such as Ca2+, Cd2+, Co2+, Cu2+, Mn2+ and Zn2+ [38,39]. As shown in Figure 6a, the Fe-DTPA2- peak appeared at a short retention time of 0.555 minutes. A linear trend line equation obtained by running a series of Fe-DTPA standard solutions was used to determine the unknown DTPA concentration in each dialysate as shown in Figure 6b.

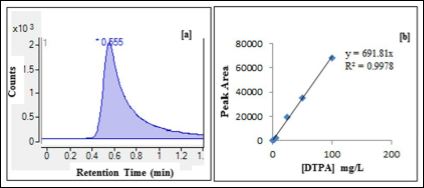

Figure 6: (a) Liquid chromatogram of Fe-DTPA^2- at a retention time of 0.555 min usingselected ion monitoring at m/z = 445. (b) Standard calibration curve of Fe-DT- PA^2- peakareas versus DTPA concentrations.

The drug release profile of DTPA from PEG functionalized titani- um dioxide nanoparticles into simulated lung fluid is given in Figure 7. The drug release profiles exhibit a rapid release of drug in the initial stage, followed by a slow, steady and controlled release of drug. Drug release profile (27 mg of DTPA in 950 mg of PEG-TiO₂) shows 88% release of DTPA occurs around 22 hours and time for half release was 4 hours. The obtained drug release half-life is longer than the biological half-life of DTPA reported in the literature, which is 90 minutes. In the initial stage, the cumulative amounts of DTPA released rapidly reach 12.5 mg/L in the first 3.4 h. The cumulative amounts of DTPA increase slowly to reach 20 mg/L within the next 8 h. At 21 h the accumulative drug released increased from 20 to 25.8 mg/L to reach its maximum concentration. After 21 h there was no significant increase in the cumulative DTPA amounts. Due to this promising result, drug release of DTPA loaded PEG-TiO₂ was performed in the presence of plain DTPA as a control. The plain drug concentration was equal to the concentration of DTPA loaded into the PEG-TiO₂. The DTPA released from PEG-TiO₂ showed an extended drug release compared to the plain drug. The drug release profile of (70 mg/L of DTPA) shows a complete release of DTPA occurs around 22 h as shown in Figure 8. The 50% of the total DTPA concentration was released from the PEG-TiO₂ at 210 minutes, while 50% of the plain drug released at 150 minutes. The half-life of the drug released from PEG-TiO₂ NPs is 60 minutes longer than the plain drugs’ half-life.

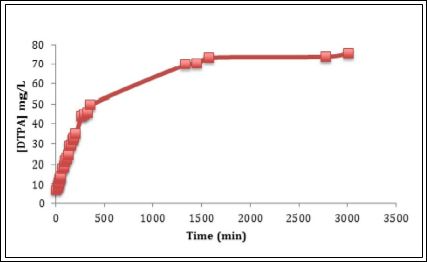

Figure 7: Drug release profile of DTPA-loaded PEG-functionalized TiO₂ nanoparticles.

The initial burst release of the drug could be attributed to the DTPA that absorbed into the surface of PEG. Then, the drug mol- ecules that interact strongly or encapsulated into the PEG-TiO₂ are released. In order to improve the drug release, it is very important to understand factors that affect the drug release such as drug solubility, particles size, and polymer-drug interaction [40].

Figure 8: Drug release profile of plain DTPA as a control.

Polyethylene glycol functionalized titanium dioxide nanoparticles have been developed successfully for use as a drug carrier. The load- ing capacity of DTPA on the prepared PEG-TiO₂ remains lower than the desired for application in decorporation. However, the prepared DTPA loaded PEG-TiO₂ showed a sustained drug release compared to DTPA itself, indicating a promising future for further development. The use of DTPA loaded PEG-functionalized TiO₂ as a decorporation Nanosystems for radioactive contaminates will be tested in the future.
